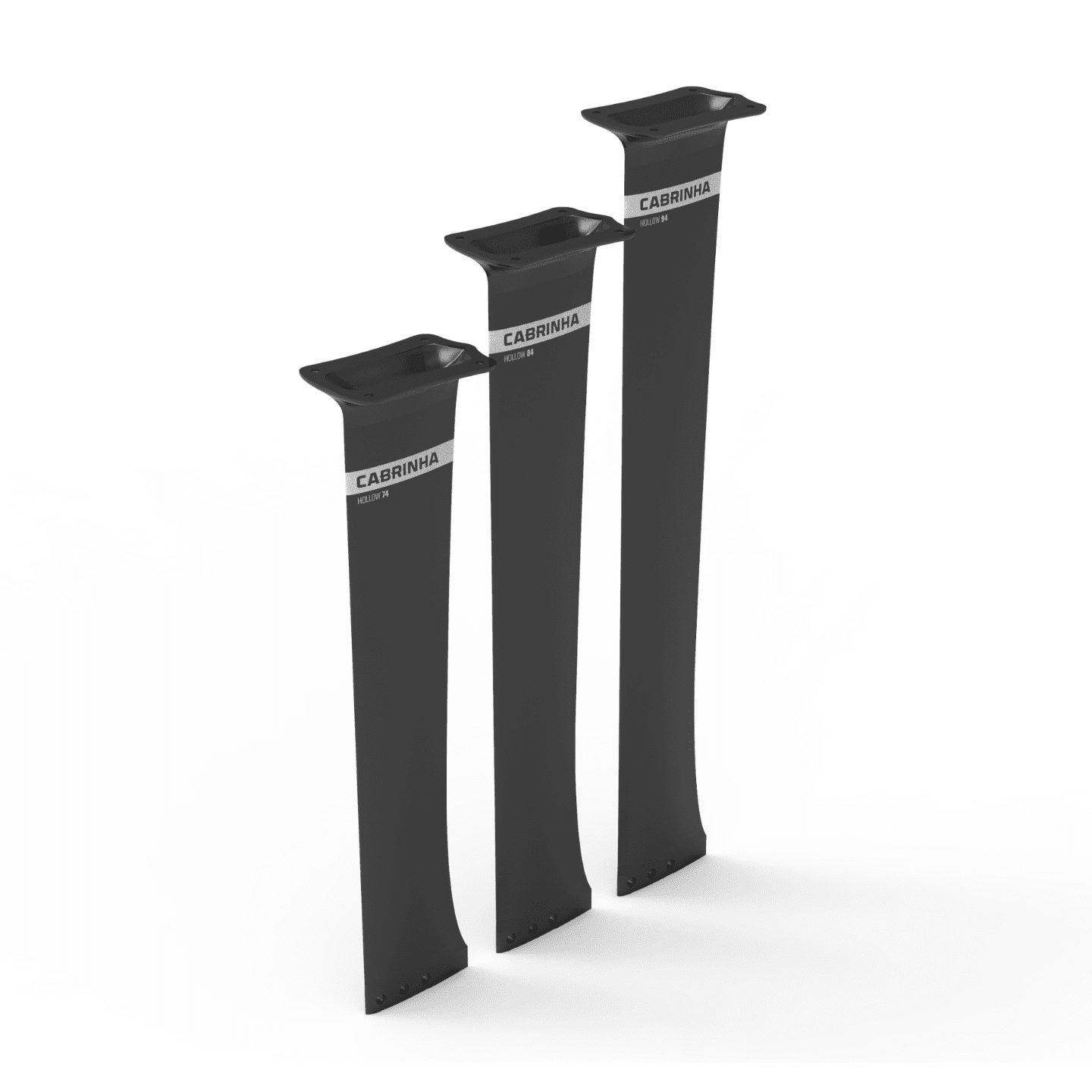

Cabrinha Fusion Carbon Mast MKII – 2023

From £995.00

HIGH PERFORMANCE – LIGHT WEIGHT

SIZES: 74 / 84 / 94 CM

The all-new Hollow Mast system is yet another example of the state of the art foil program from Cab Design Works. It nods to the critical & complete design approach of the team to view every foil component individually with a view to improve stiffness across the entire platform. It implements a bladder molded construction with strategic layering of carbon as far to the outside as possible. This culminates in our stiffest ever mast to front wing connection. This reduction in flex eliminates any lag in the turn and transfers energy while pumping seamlessly through to the front wing.

SKU: K3FSMASTC Categories: , ,

Description

DESIGN DETAIL

DESIGN PROFILE

Superior Torsional and bend rigidity.  Low weight and minimum drag.

FEATURES

  • Optimized airfoil for low drag to stiffness ratio
  • TE scallop for improved turning and efficiency
  • Integrated high modulus mounting plate
  • Bladder molded, hollow mast construction for superior skin compression, providing ultimate rigidity
  • Premium high modulus prepreg carbon fiber construction
  • Barrel Nut compatible(x-series MkII and H-series MKII)
  • Tapered Fit

TECH SPECS

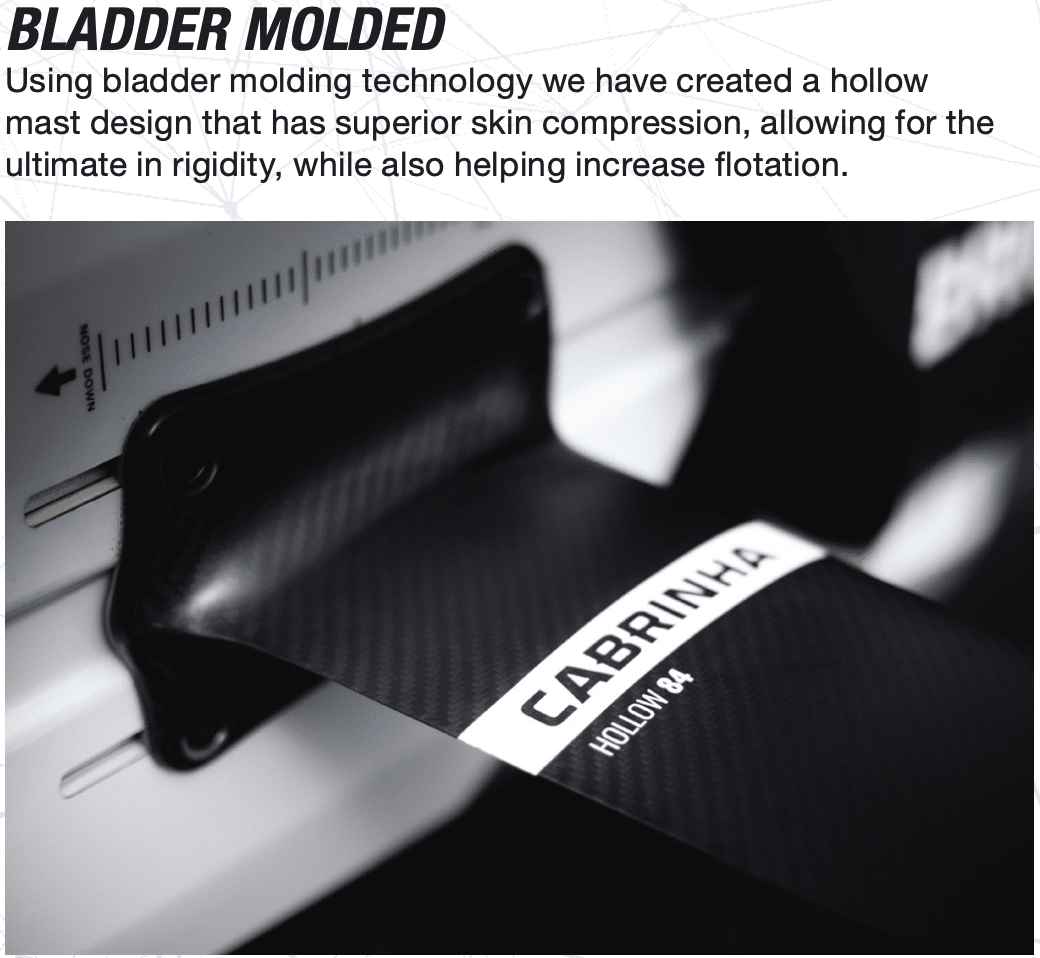

BLADDER MOLDED
Using bladder molding technology we have created a hollow mast design that has superior skin compression, allowing for the ultimate in rigidity, while also helping increase flotation.

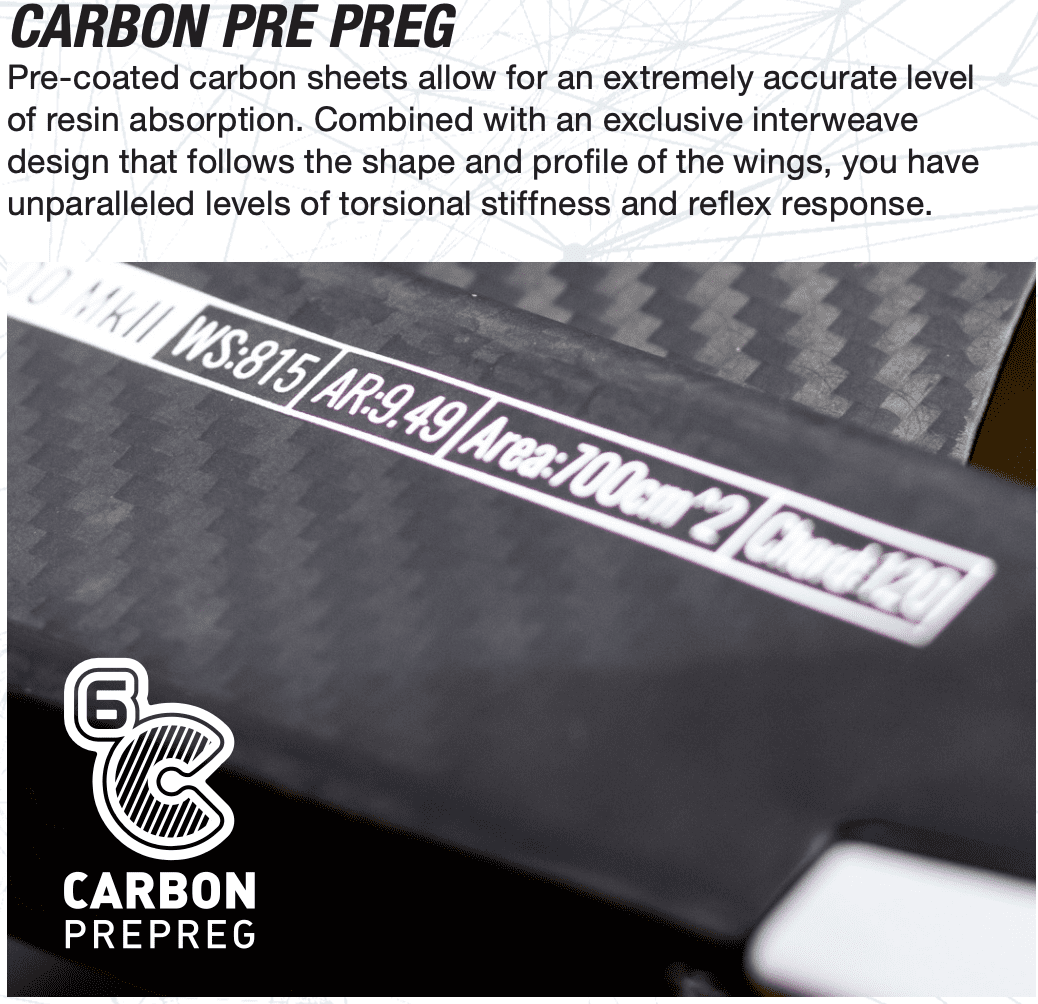

PRE PREG
Pre coated carbon sheets allow for an extremely accurate level of resin absorption. Combined with an exclusive interweave design that follows the shape and profile of the mast, you have unparalleledThe levels of torsional stiffness and reflex response.

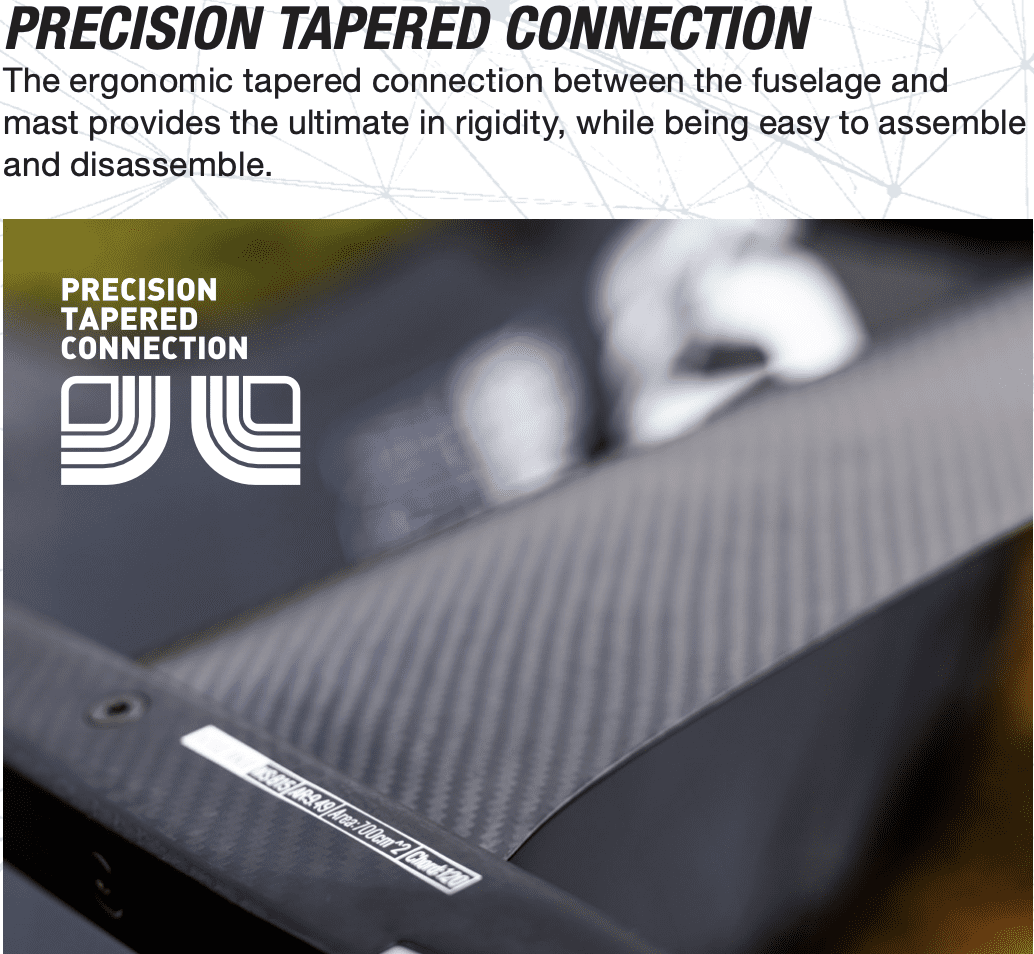

TAPERED FIT
The ergonomic tapered connection between the fuselage and mast provides the ultimate in rigidity, while being easy to assemble and disassemble.

MAST LENGTH GUIDE

BUILDING YOUR FOIL

Foiling is one of the most diverse watersports. From using the power of waves, wind or yourself to propel you above the water, there are so many ways to enjoy this unique feeling. Each aspect is different, each rider is different, so we offer a modular approach to building a foil to allow you to build what you need, just how you want it.

CHOOSE YOUR FRONT WING

The front wing is the most integral part of the foil setup, and defines the feel and direction of your experience. We offer 3 different collections of front wings to suit all levels and disciplines of foiling.

X Series MKII:  Maneuverability, versatility, stability.

H:Series:  High Speed Maneuverability.

H: Series MKII: Glide, Efficiency, performance.

CHOOSE YOUR STABILIZER

The stabilizer is an essential component of any setup, providing crucial directional control and stability. Don’t hesitate to experiment with different styles to find what works best for you, but keep in mind that smaller stabilizers tend to be more maneuverable and less stable, while larger stabilizers offer greater stability and a more secure ride.

V Series:  Perfect for whatever style.  180 for a loose fast ride, 230 for all round and 285 for the ultimate stability.

CHOOSE YOUR FUSELAGE

Achieve peak performance in hydrofoiling with the appropriate fuselage length. With different sizes to choose from, a short fuselage grants more maneuverability, while a longer one yields improved stability.

Fusion Fuselages:

Multiple Lengths to suit your riding style (only applicable with X and V Series Stabilizers).

  • 276 mm: Excellent maneuverability (Available in Alloy)
  • 346mm: All round performance and reliable stability (Available in Alloy or Carbon)
  • 416mm: Maximum stability (Available in Alloy)

CHOOSE YOUR MAST

For hydrofoiling, the mast is a crucial element of the setup. Cabrinha provides a range of sizes and materials to choose from, ensuring that every rider can find the perfect fit for their ability and foiling discipline.

Fusion Carbon Mast Hollow:  Superior Technical Design.  Lightweight, High speed profile, and maximum response.

Sizes:  74cm, 84cm, 94cm

Fusion Alloy Mast MKII: The Versatile System.   Durability, stiffness and accessibility.

Sizes: 40cm, 65cm, 75cm, 85cm

Two plate options are also available for the Fusion Alloy Mast.  The standard Fusion Alloy Top Plate, or the quick connecting FQR system.

CHOOSE YOUR MAST LENGTH

The final link in the chain is deciding on the mast length you need. Sport, location and ability all play a key roll in this step, but with many options available, there is something to suit all styles.

Sizes:

40cm: Entry into the sport:  Wing Foil / Surf Foil / Kite Foil
65cm: Surf Foil / Wing Foil
74/75cm: Wing Foil / Surf Foil / Kite Foil
84/85cm: Wing Foil / Surf Foil / Kite Foil / Tow Foil
94/95cm: Wing Foil / Kite Foil / Tow Foil

Additional information

Sizes

74 CM, 84 CM, 94 CM
