Cabrinha Foil Kit Wing Pack Fusion X-Series MKII Kit - 2023

SKU: K3FKWPX2V070180
Sale price£960.00
2 in stock

FREERIDE

SIZES: X700 / X930 / X1240 / X1650 / 2100

Sizes:

Sizes

Categories:

Tags:

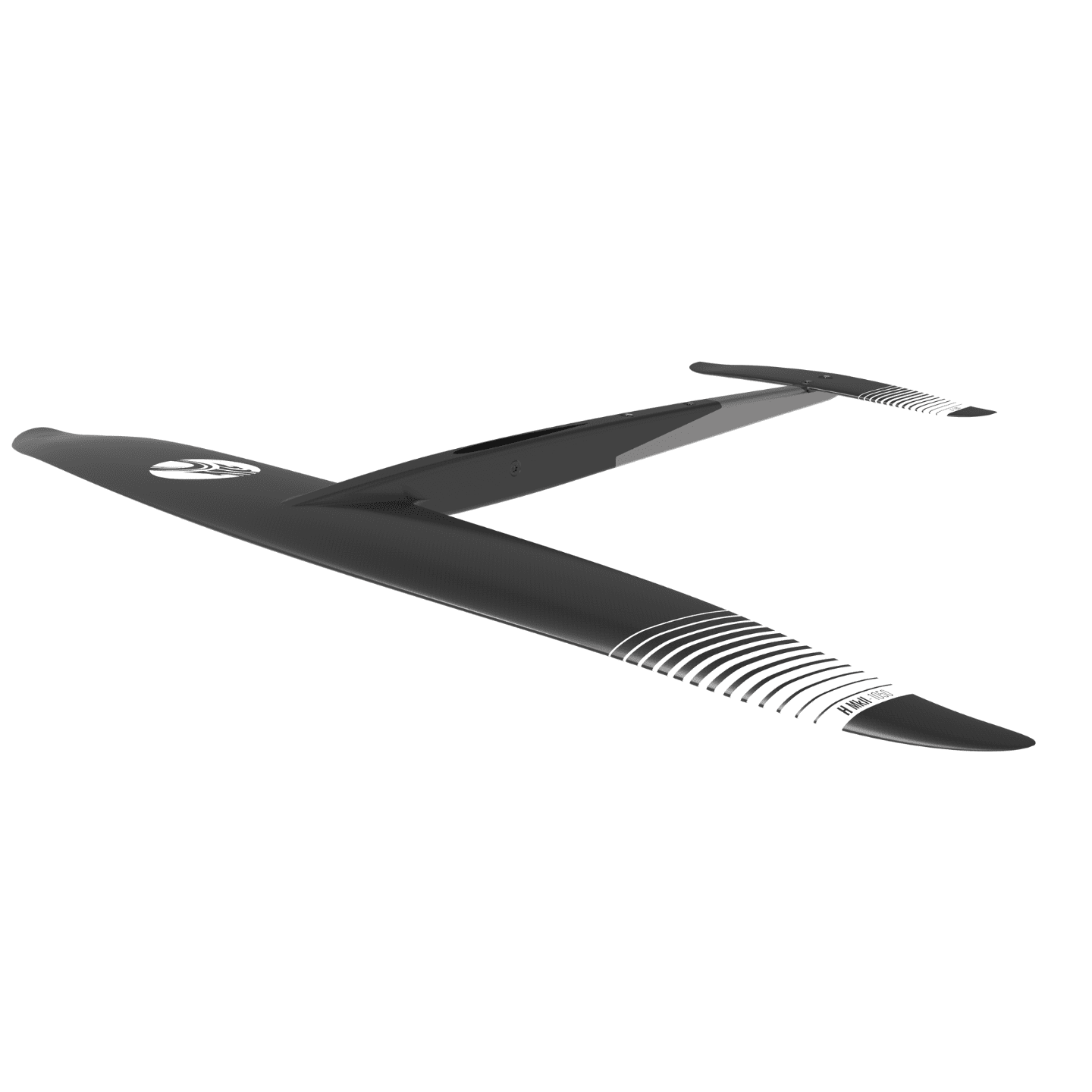

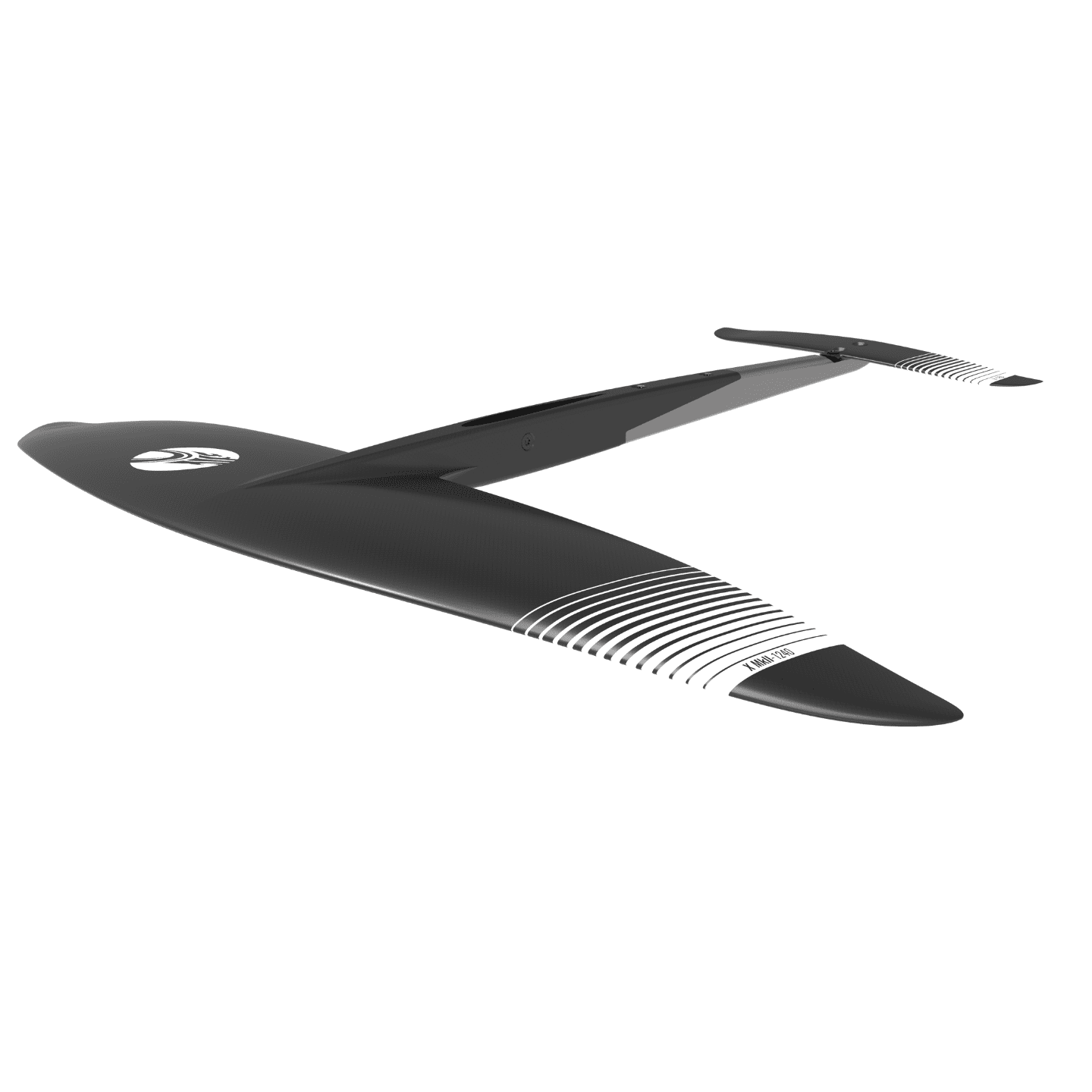

Cabrinha Foil Kit Wing Pack Fusion X Series Mkii Kit – 2023
Cabrinha Foil Kit Wing Pack Fusion X-Series MKII Kit - 2023 Sale price£960.00

Description





DESIGN DETAIL


DESIGN PROFILE

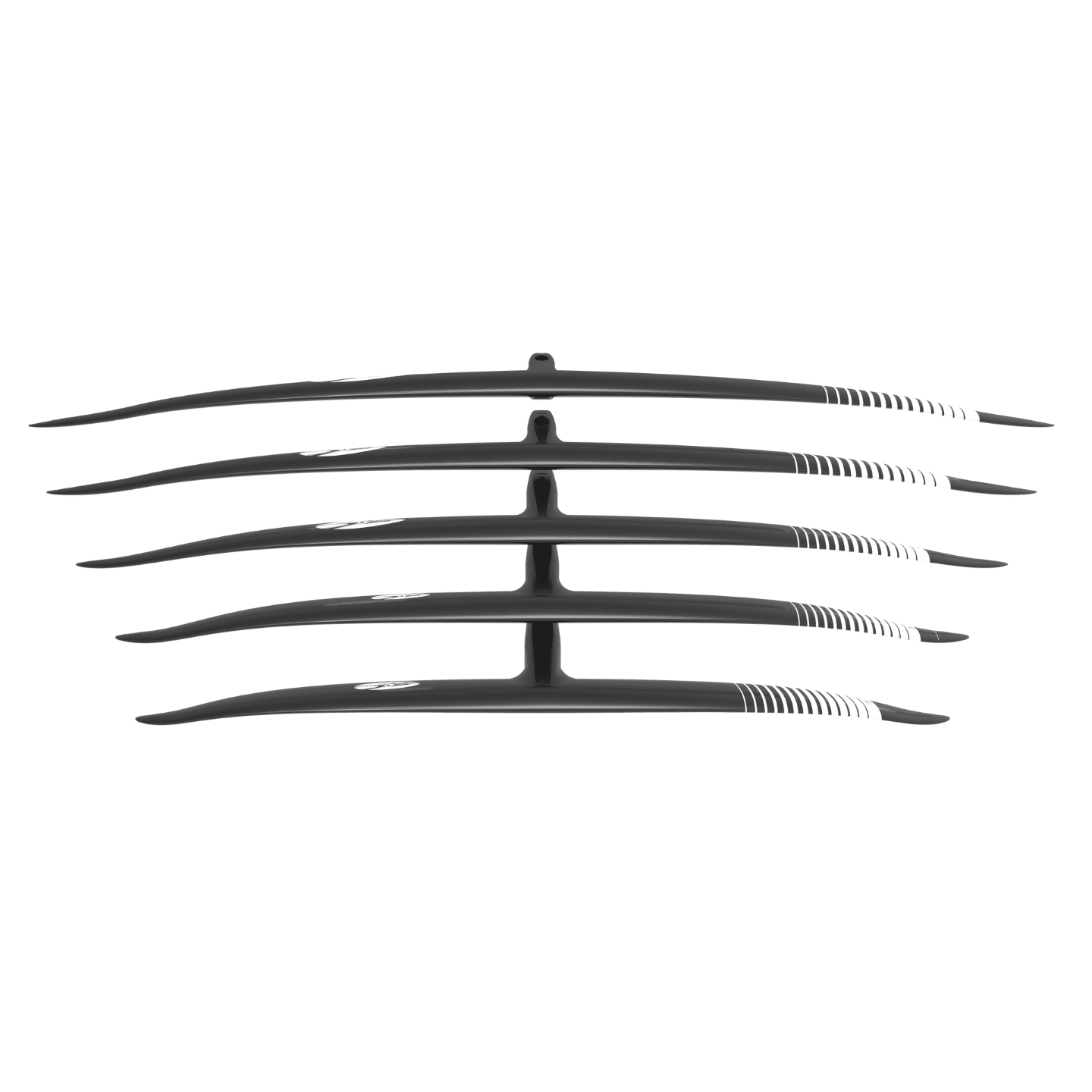

Swept LE, Straight TE, Ultra lean efficient profile, moderate anhedral

WING FEATURES
  • Loose and agile
  • All round lean profile
  • Refined tip shape
  • Tapered fit
  • Torsional Stiffness
  • Medium AR
  • PMI core
  • Pre Preg construction
  • Modular

TECH SPECS

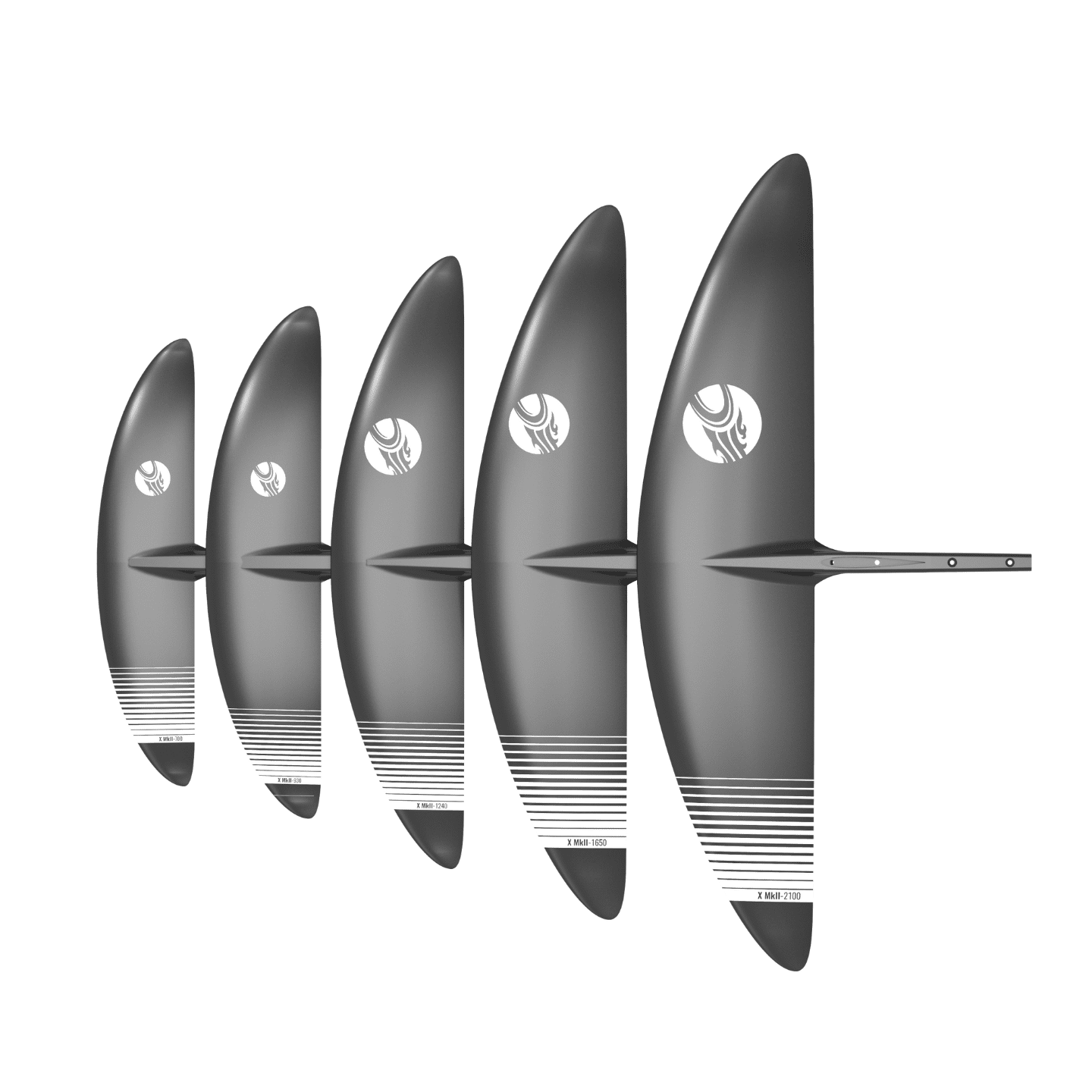

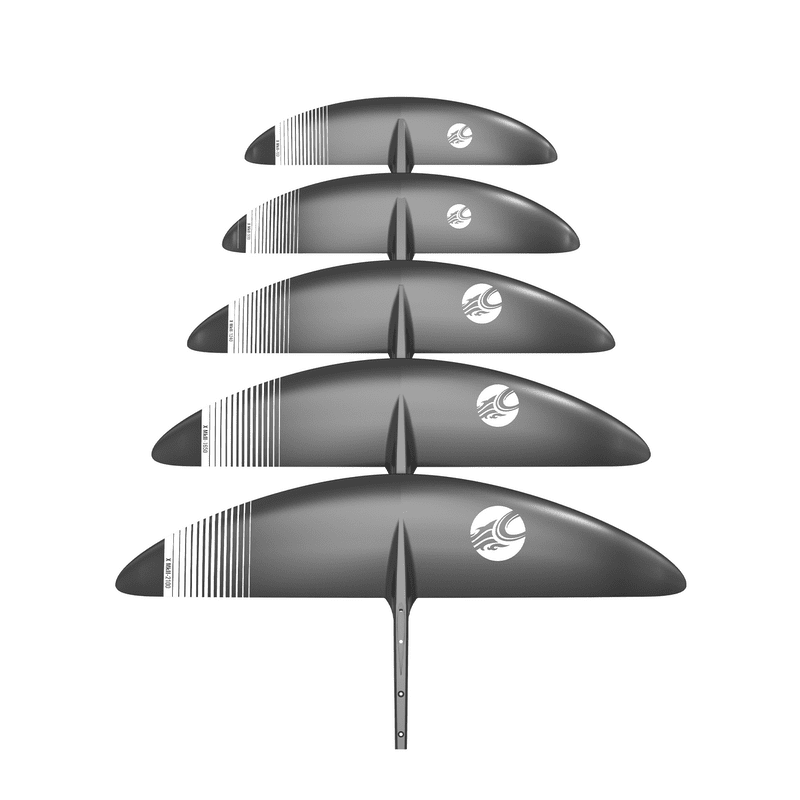

  • X700- 700cm^2, WS 640mm, AR 5.85, Chord 140
  • X930- 930cm^2, WS 750mm, AR 6.05, Chord 165
  • X1240- 1240cm^2 WS 870mm, AR 6.10, Chord 190
  • X1650- 1650 cm^2, WS 1010mm, AR 6.18, Chord 220
  • X2100- 2100 cm^2, WS 1150mm, AR 6.01, Chord 255
BARREL NUT
Brass 'through bolt' adds torsional stiffness to the wing / mast connection point.PRE PREG
By using pre-coated carbon sheets, we achieve an incredibly accurate level of resin absorption, resulting in superior torsional stiffness and reflex response due to our unique interweave design that follows the shape and profile of the wings.MODULAR
The modularity of the CAB Fusion system allows you to seamlessly interchange between any of the X-Series and H-Series front wings and stabilizers.

FOIL GUIDE

BUILDING YOUR FOIL

Foiling is a sport with endless possibilities. Whether you're catching waves, harnessing the wind, or simply relying on your own strength, the feeling of soaring above the water is truly exhilarating. With each rider having their own style and preferences, we offer a modular approach to building a foil that allows you to tailor your equipment to your exact needs.

CHOOSE YOUR FRONT WING

The front wing is the most integral part of the foil setup, and defines the feel and direction of your experience. We offer 3 different collections of front wings to suit all levels and disciplines of foiling.

X Series MKII:  Maneuverability, versatility, stability.

H:Series:  High Speed Maneuverability.

H: Series MKII: Glide, Efficiency, performance.

CHOOSE YOUR STABILIZER

The stabilizer is an essential component of any setup, providing crucial directional control and stability. Don't hesitate to experiment with different styles to find what works best for you, but keep in mind that smaller stabilizers tend to be more maneuverable and less stable, while larger stabilizers offer greater stability and a more secure ride.

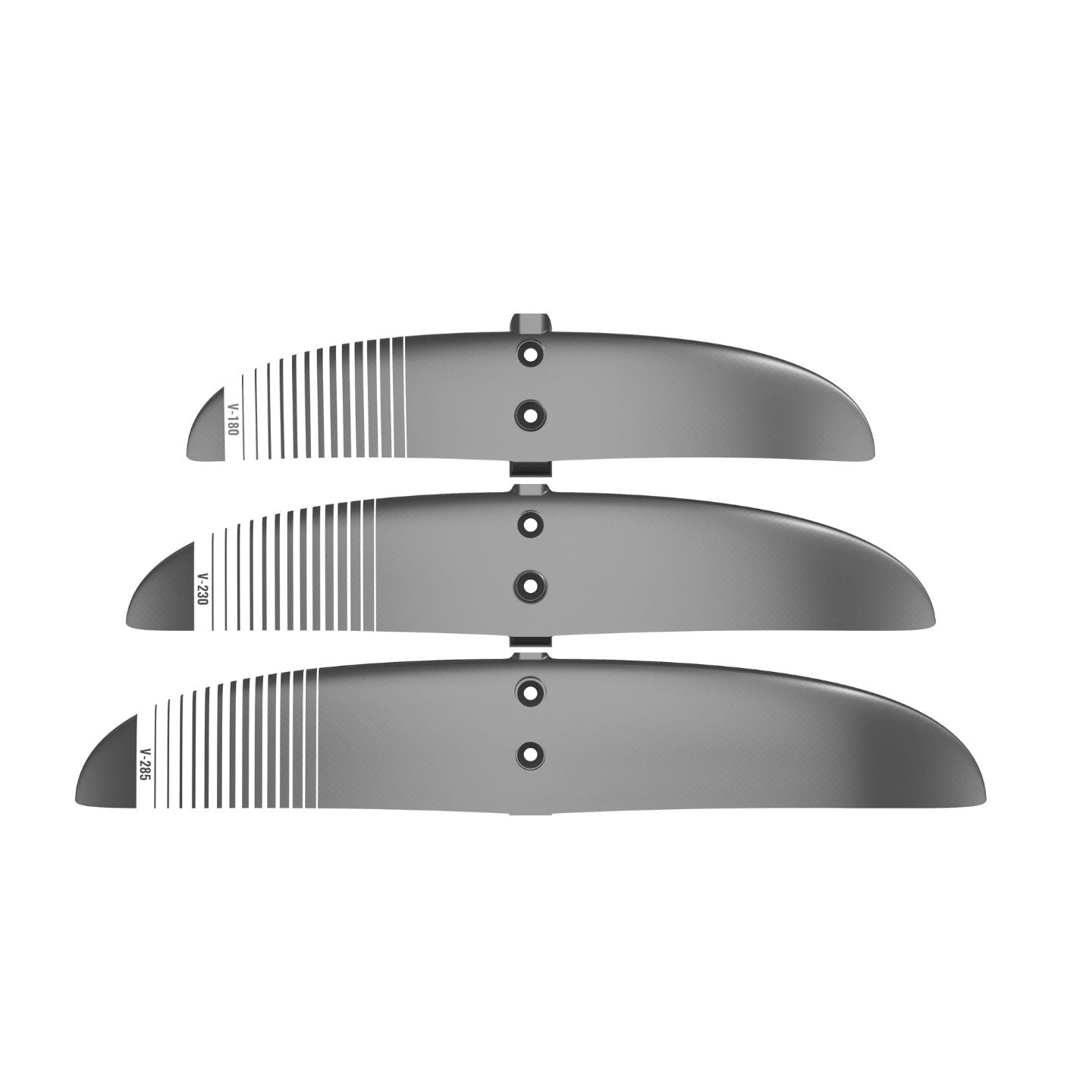

V Series:  Perfect for whatever style.  180 for a loose fast ride, 230 for all round and 285 for the ultimate stability.

CHOOSE YOUR FUSELAGE

Achieve peak performance in hydrofoiling with the appropriate fuselage length. With different sizes to choose from, a short fuselage grants more maneuverability, while a longer one yields improved stability.

Fusion Fuselages:

Multiple Lengths to suit your riding style (only applicable with X and V Series Stabilizers).

  • 276 mm: Excellent maneuverability (Available in Alloy)
  • 346mm: All round performance and reliable stability (Available in Alloy or Carbon)
  • 416mm: Maximum stability (Available in Alloy)

CHOOSE YOUR MAST

For hydrofoiling, the mast is a crucial element of the setup. Cabrinha provides a range of sizes and materials to choose from, ensuring that every rider can find the perfect fit for their ability and foiling discipline.

Fusion Carbon Mast Hollow:  Superior Technical Design.  Lightweight, High speed profile, and maximum response.

Sizes:  74cm, 84cm, 94cm

Fusion Alloy Mast MKII: The Versatile System.   Durability, stiffness and accessibility.

Sizes: 40cm, 65cm, 75cm, 85cm

Two plate options are also available for the Fusion Alloy Mast.  The standard Fusion Alloy Top Plate, or the quick connecting FQR system.

CHOOSE YOUR MAST LENGTH

The final link in the chain is deciding on the mast length you need. Sport, location and ability all play a key roll in this step, but with many options available, there is something to suit all styles.

Sizes:

40cm: Entry into the sport:  Wing Foil / Surf Foil / Kite Foil
65cm: Surf Foil / Wing Foil
74/75cm: Wing Foil / Surf Foil / Kite Foil
84/85cm: Wing Foil / Surf Foil / Kite Foil / Tow Foil
94/95cm: Wing Foil / Kite Foil / Tow Foil
