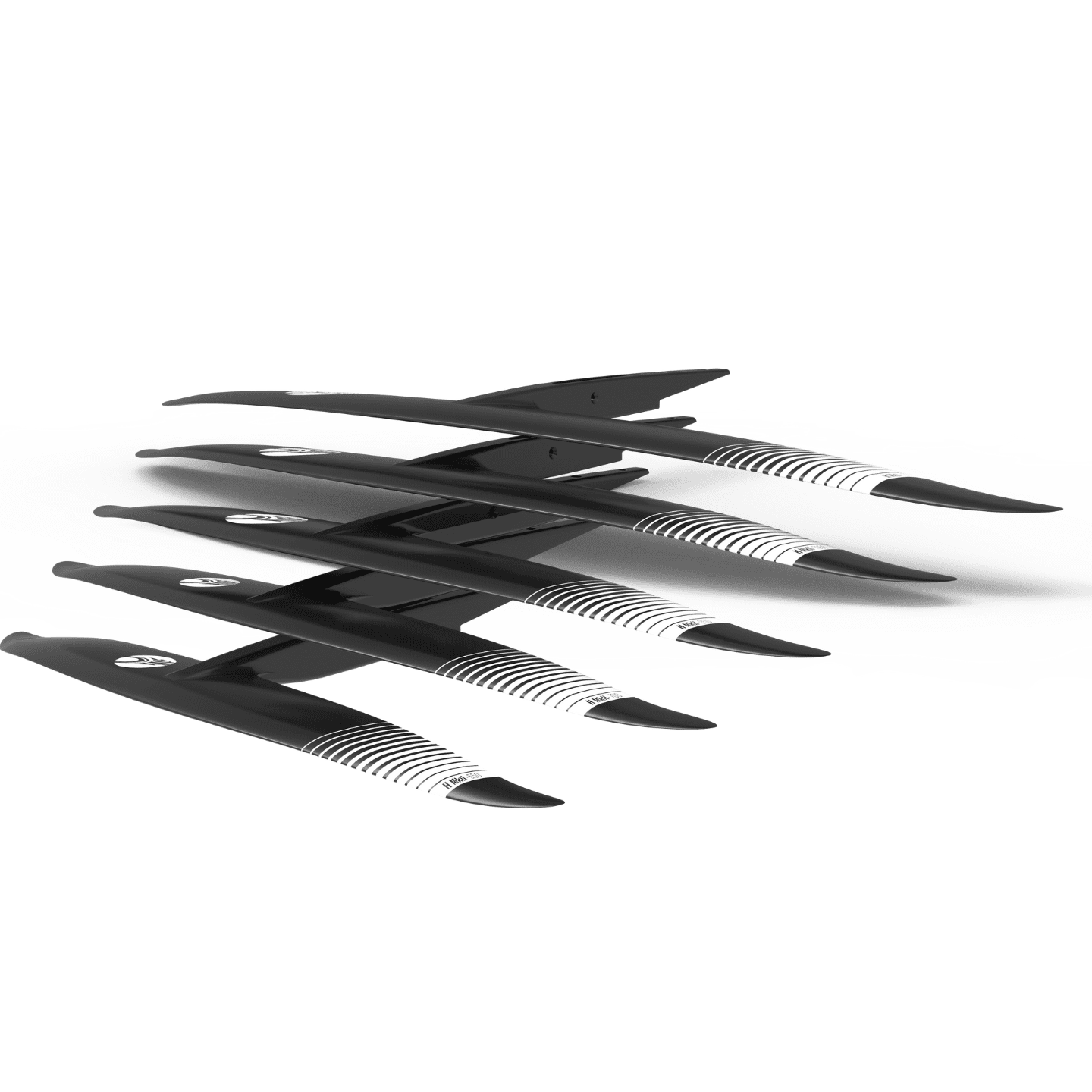

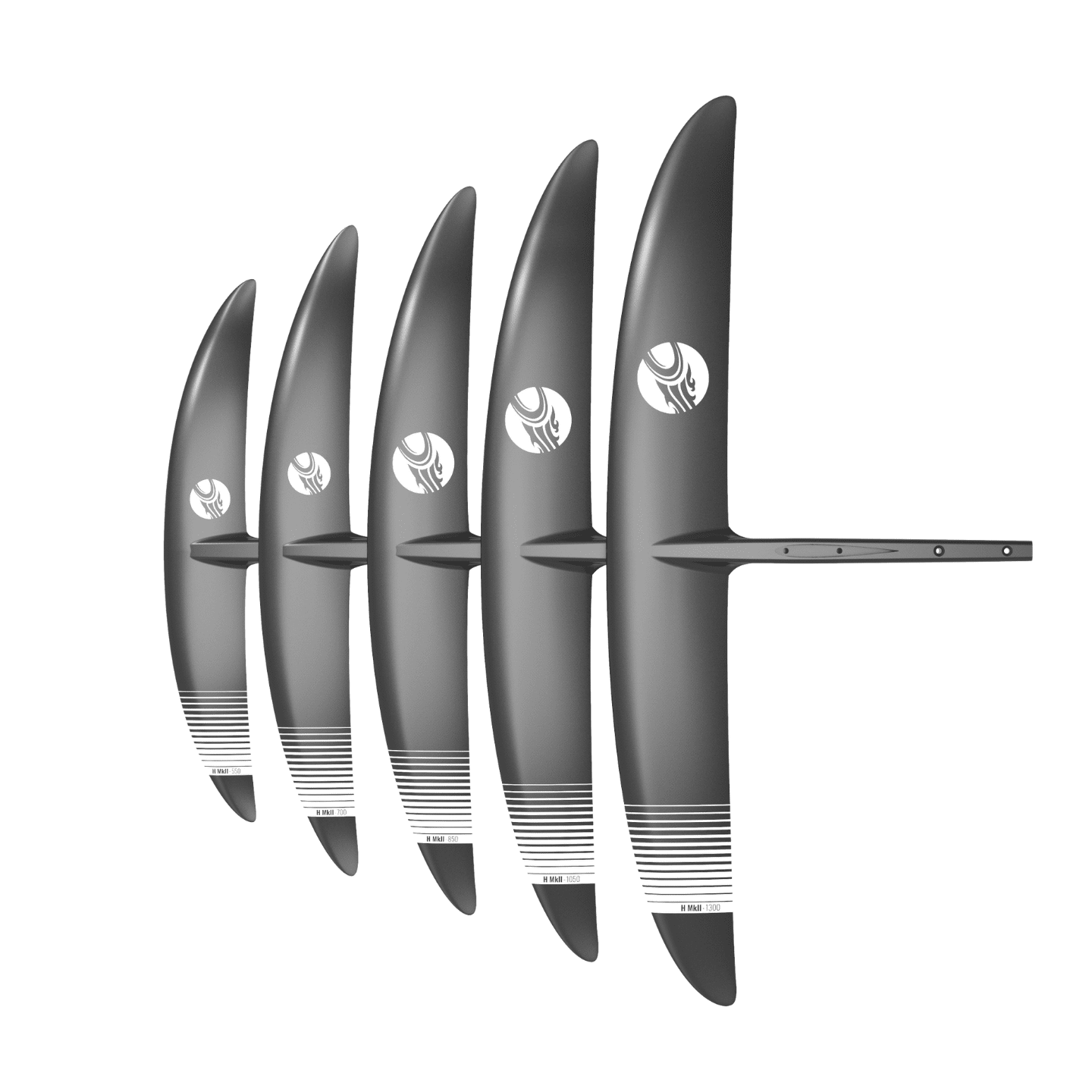

Cabrinha Fusion H-Series Wings MKII - 2023

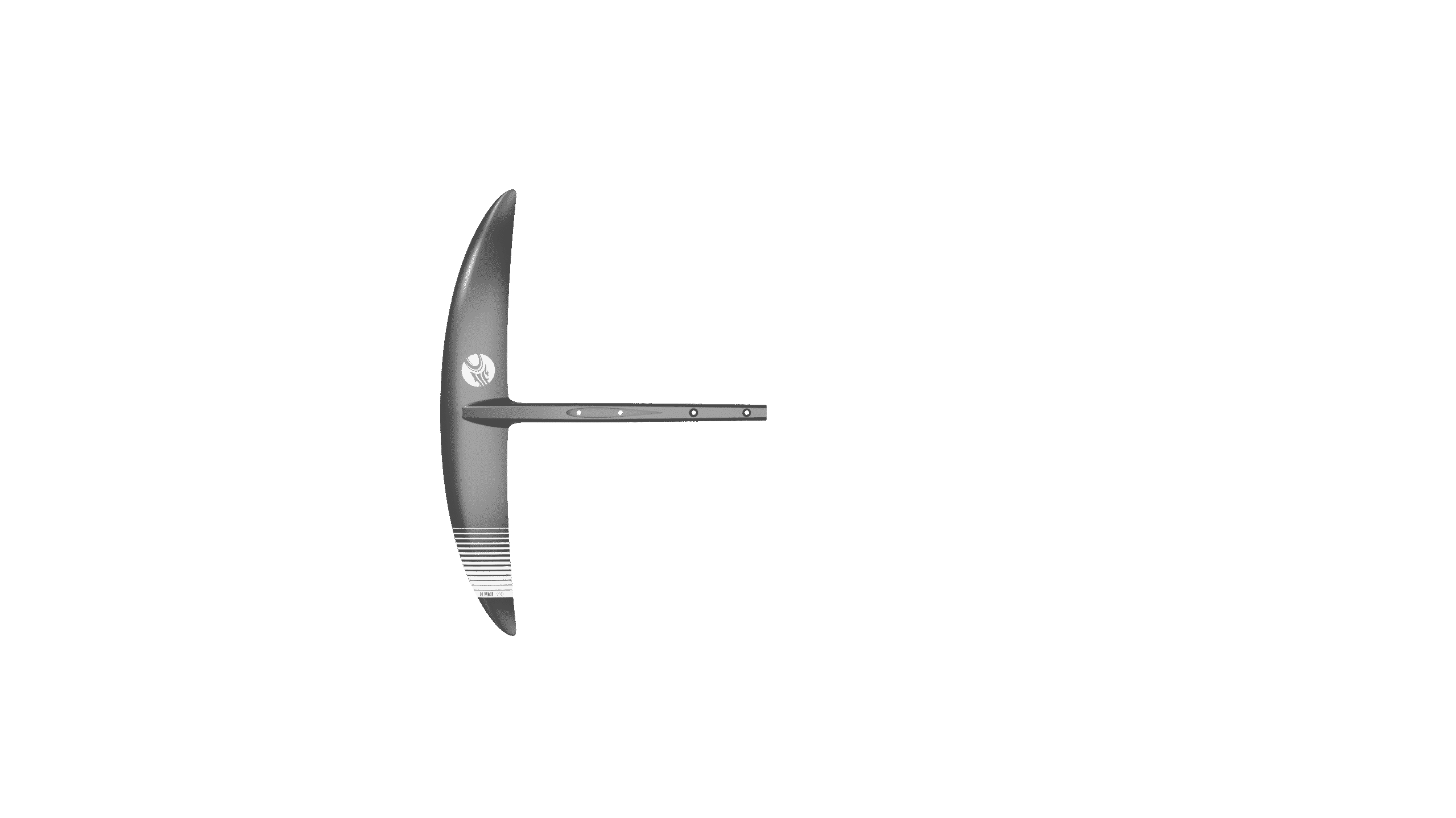

• H550- 550cm², WS 690, AR 9.52, Chord 110mm

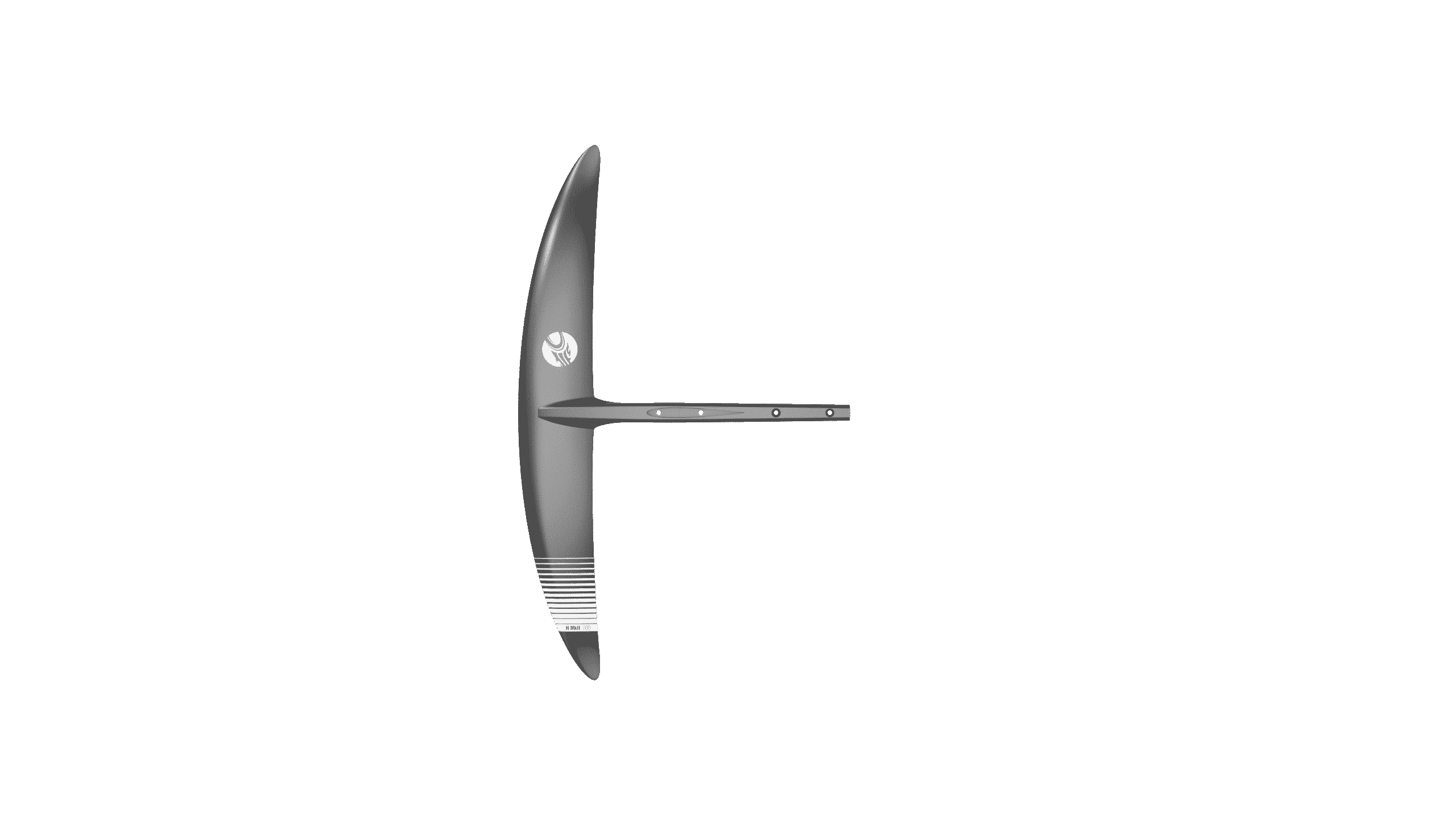

• H700- 700cm², WS 815, AR 9.49, Chord 120mm

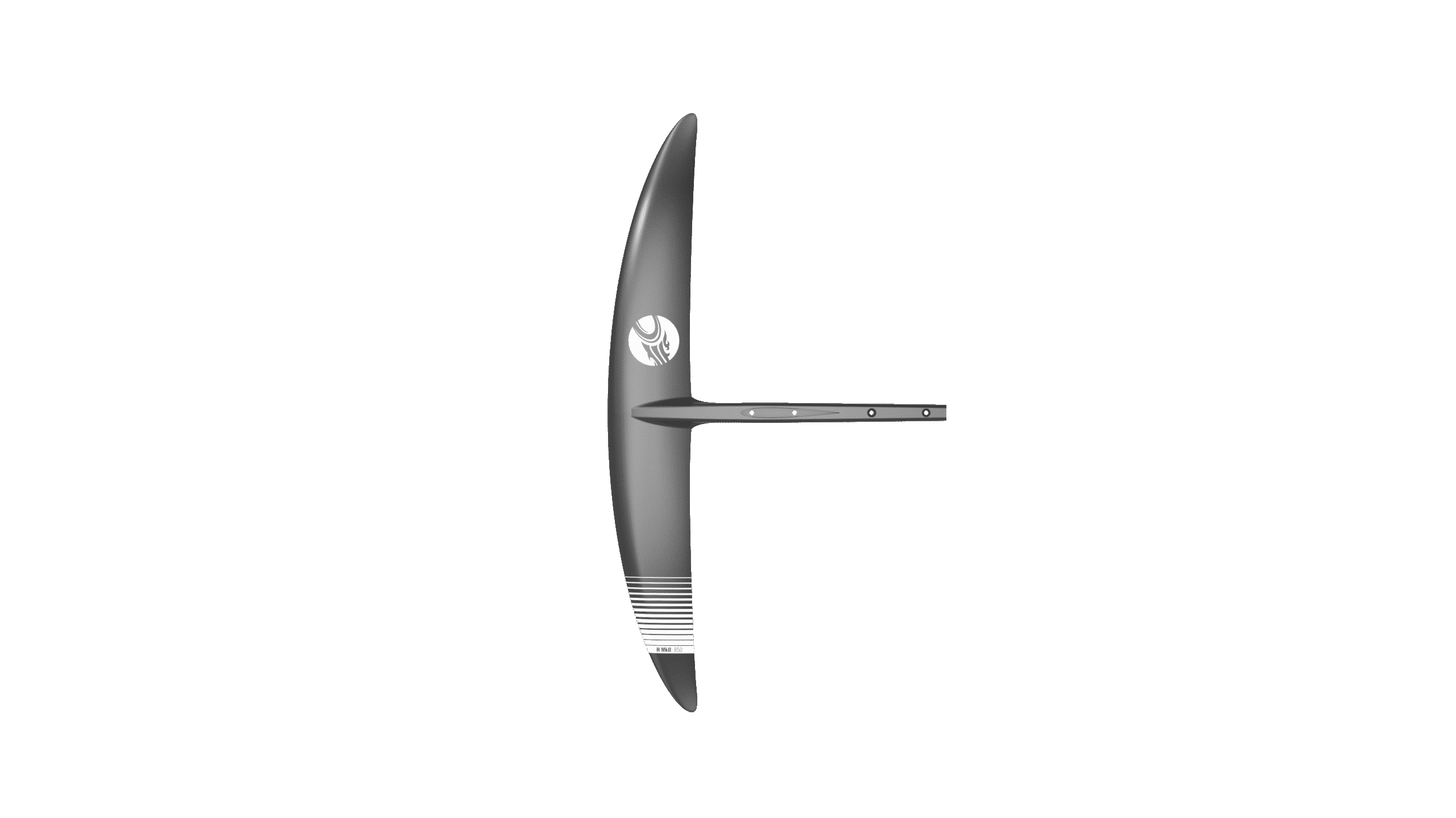

• H850- 850cm², WS 900, AR 9.53 Chord 130mm

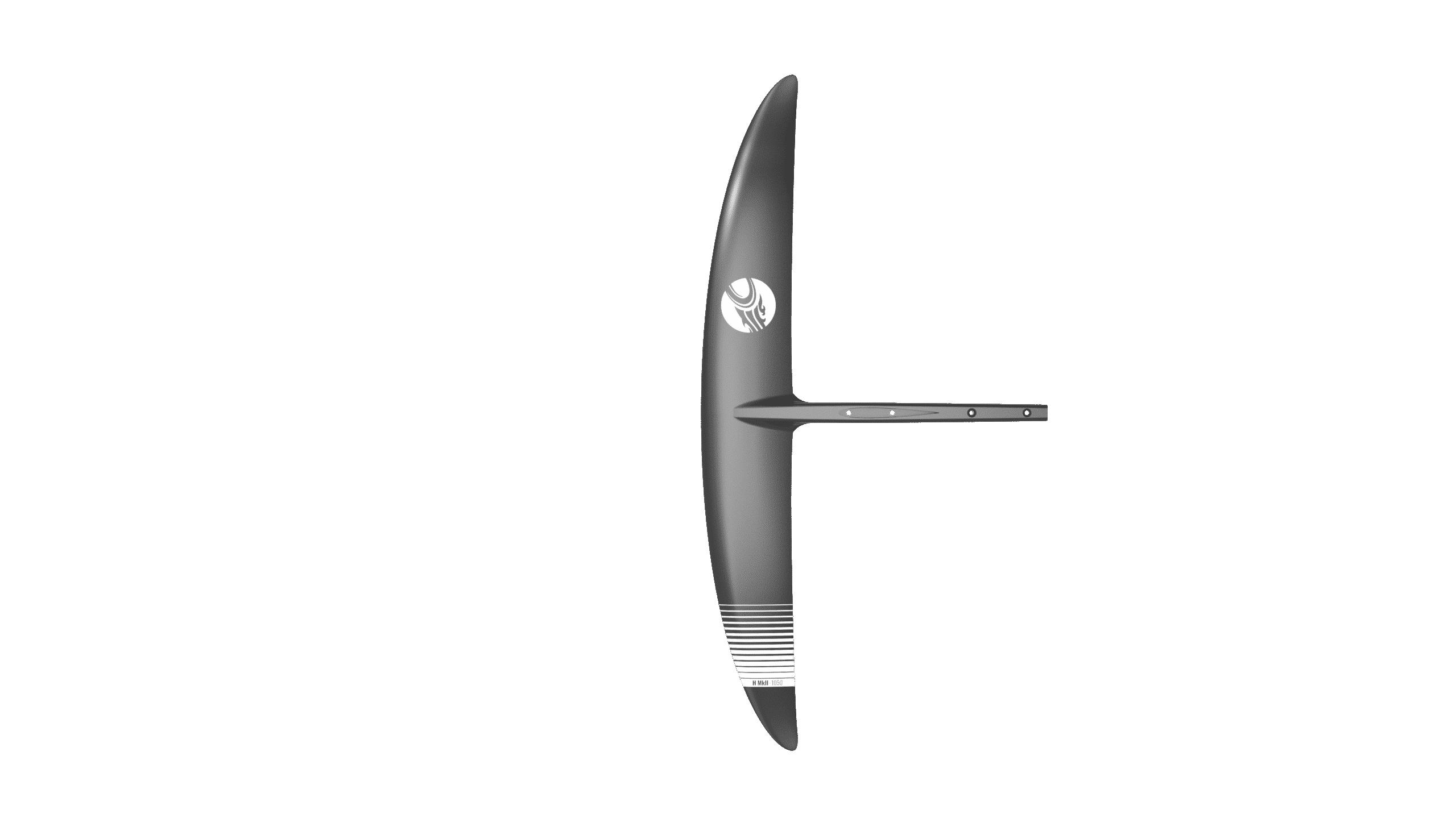

• H1050- 1050cm², WS 1000, AR 9.52, Chord 140mm

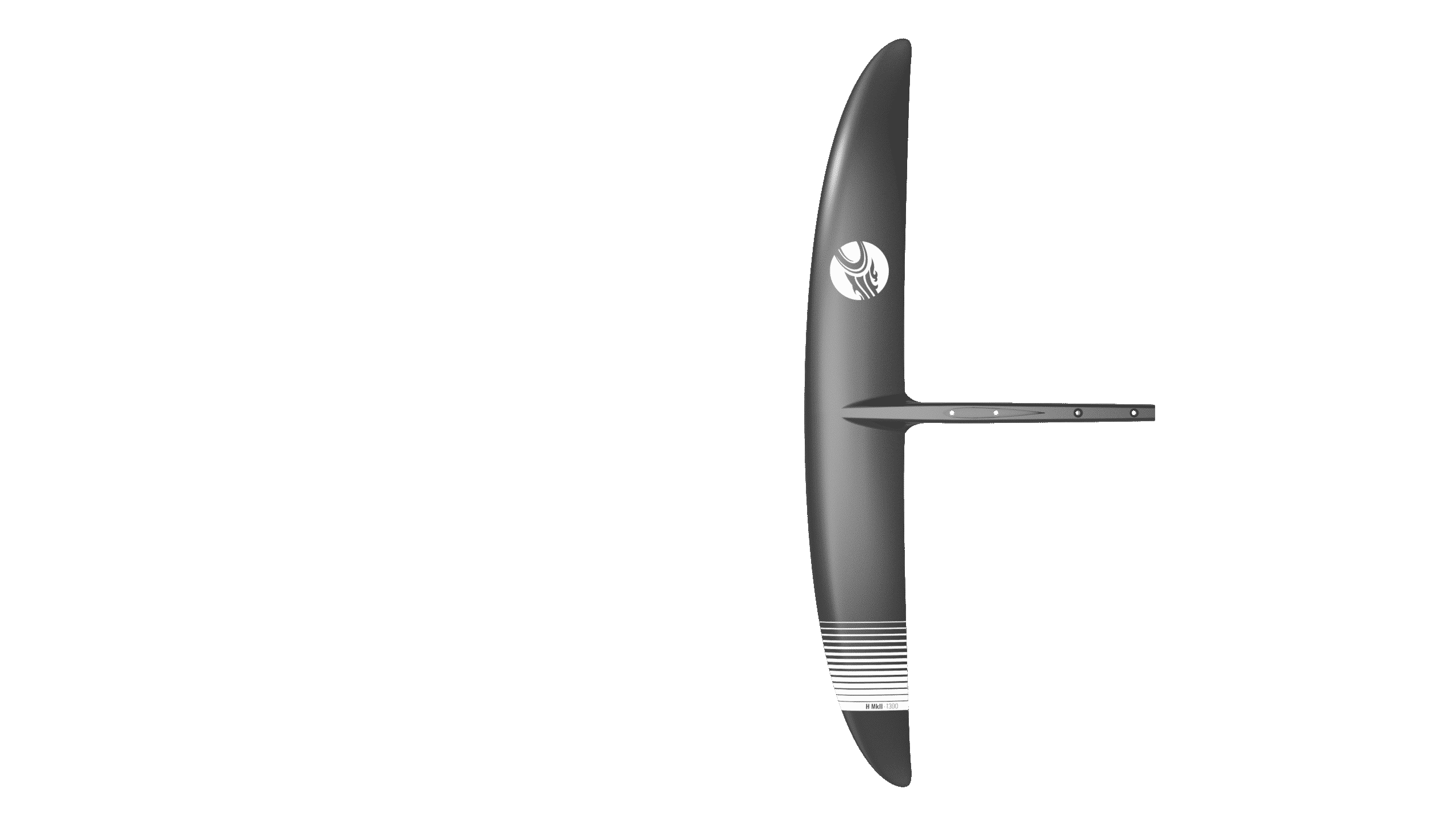

• H1300 - 1300c m ², WS 1090, AR 9.14, Chord 150mm

Set includes:

Wing cover, 2 x m6x30mm, 1 x m6x15mm, m6 barrel nut, screws.

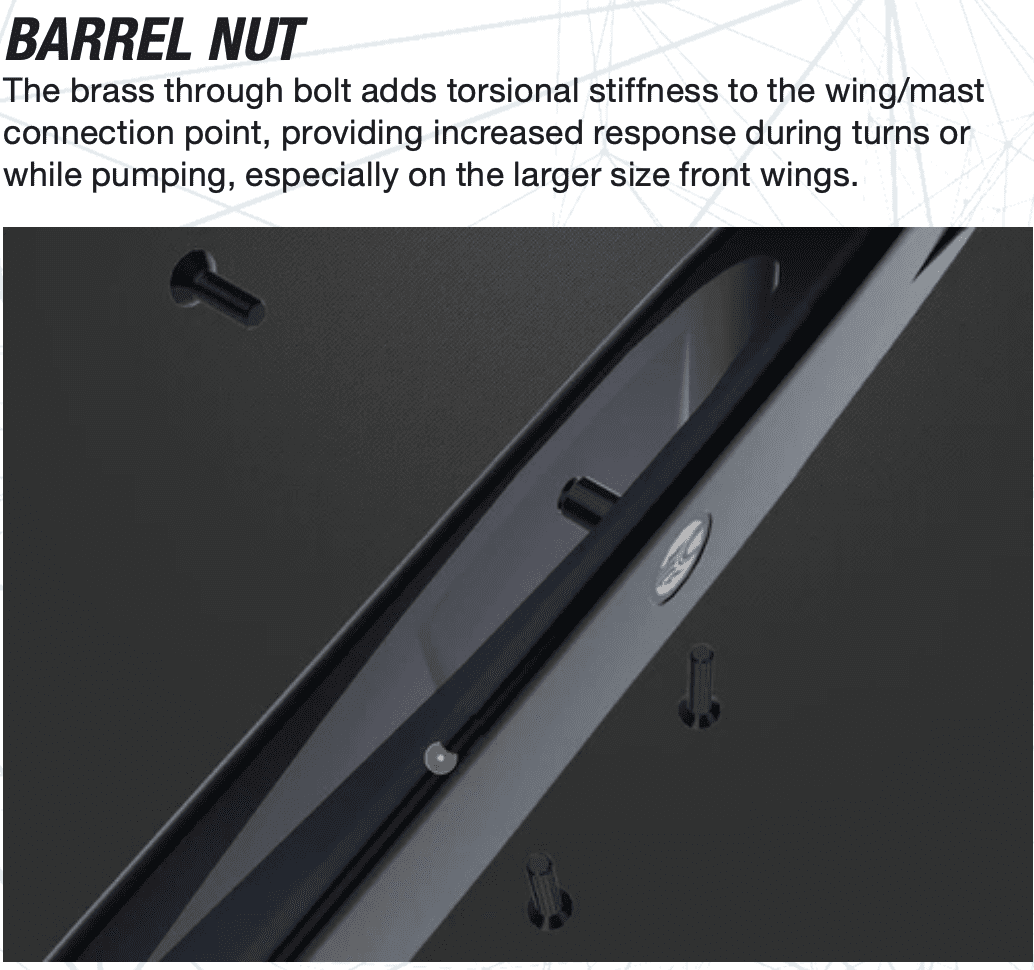

BARREL NUT
The brass through bolt adds torsional stiffness to the wing/mast connection point, providing increased response during turns or while pumping, especially on the larger size front wings.

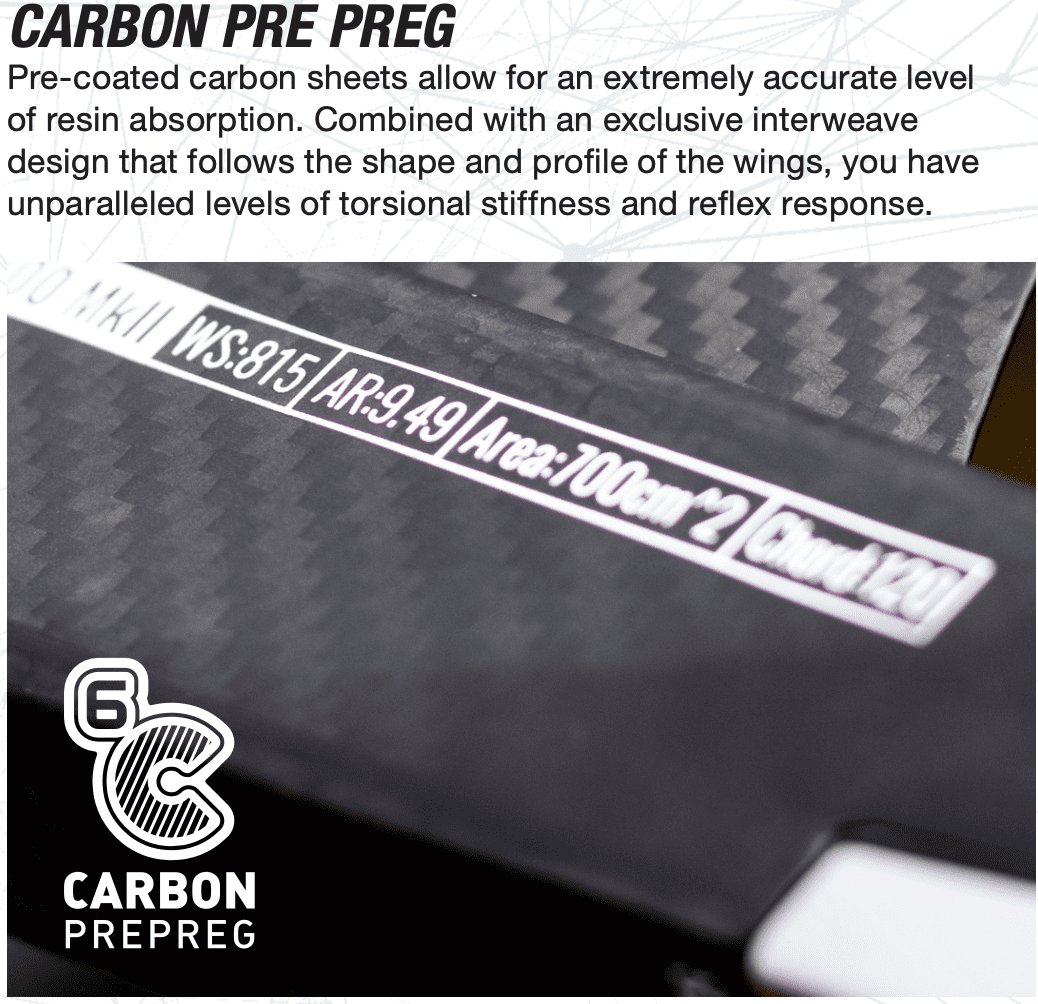

PRE PREG
Pre coated carbon sheets allow for an extremely accurate level of resin absorption. Combined with an exclusive interweave design that follows the shape and profile of the wings, you have unparallel levels of torsional stiffness and reflex response.

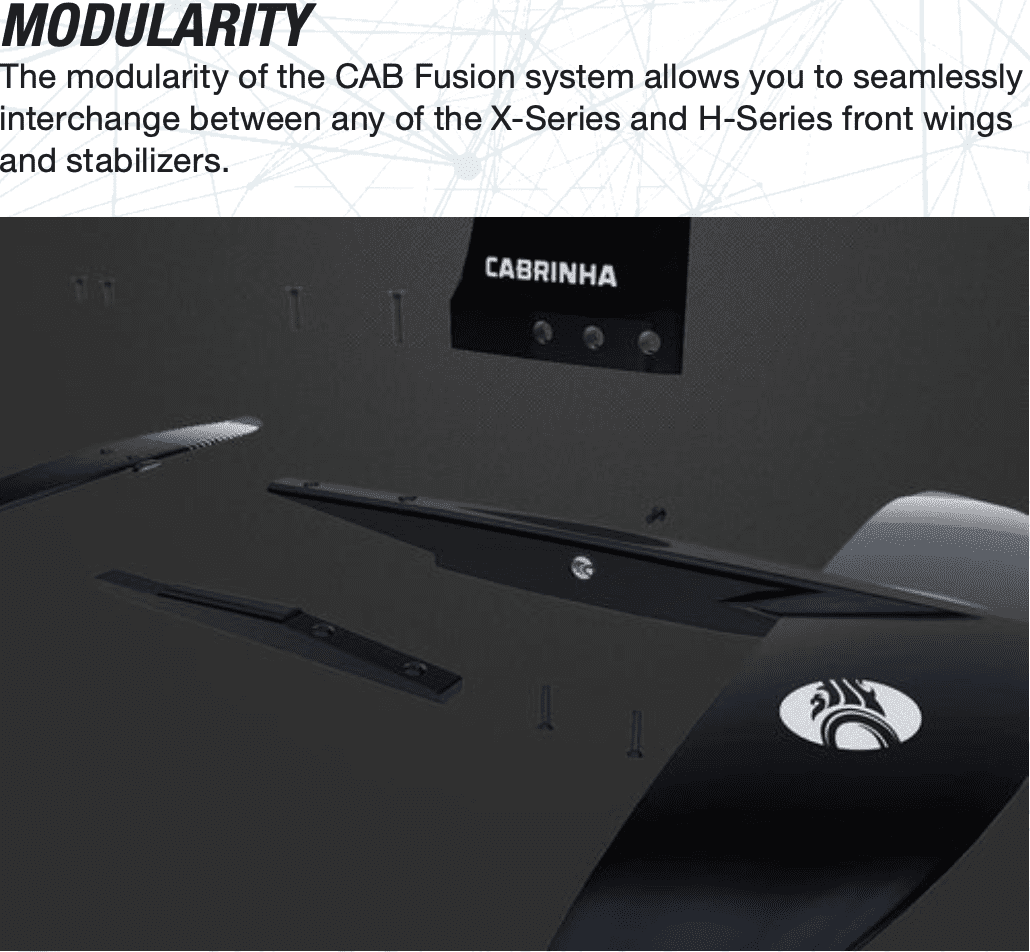

MODULAR
The modularity of the CAB Fusion system allows you to seamlessly interchange between any of the X-Series and H-Series front wings and stabilizers.

BUILDING YOUR FOIL

Foiling is one of the most diverse watersports. From using the power of waves, wind or yourself to propel you above the water, there are so many ways to enjoy this unique feeling. Each aspect is different, each rider is different, so we offer a modular approach to building a foil to allow you to build what you need, just how you want it.

CHOOSE YOUR FRONT WING

The front wing is the most integral part of the foil setup, and defines the feel and direction of your experience. We offer 3 different collections of front wings to suit all levels and disciplines of foiling.

X Series MKII:  Maneuverability, versatility, stability.

H:Series:  High Speed Maneuverability.

H: Series MKII: Glide, Efficiency, performance.

CHOOSE YOUR STABILIZER

The stabilizer is an essential component of any setup, providing crucial directional control and stability. Don't hesitate to experiment with different styles to find what works best for you, but keep in mind that smaller stabilizers tend to be more maneuverable and less stable, while larger stabilizers offer greater stability and a more secure ride.

V Series:  Perfect for whatever style.  180 for a loose fast ride, 230 for all round and 285 for the ultimate stability.

CHOOSE YOUR FUSELAGE

Achieve peak performance in hydrofoiling with the appropriate fuselage length. With different sizes to choose from, a short fuselage grants more maneuverability, while a longer one yields improved stability.

Fusion Fuselages:

Multiple Lengths to suit your riding style (only applicable with X and V Series Stabilizers).

• 276 mm: Excellent maneuverability (Available in Alloy)
• 346mm: All round performance and reliable stability (Available in Alloy or Carbon)
• 416mm: Maximum stability (Available in Alloy)

CHOOSE YOUR MAST

For hydrofoiling, the mast is a crucial element of the setup. Cabrinha provides a range of sizes and materials to choose from, ensuring that every rider can find the perfect fit for their ability and foiling discipline.

Fusion Carbon Mast Hollow:  Superior Technical Design.  Lightweight, High speed profile, and maximum response.

Sizes:  74cm, 84cm, 94cm

Fusion Alloy Mast MKII: The Versatile System.   Durability, stiffness and accessibility.

Sizes: 40cm, 65cm, 75cm, 85cm

Two plate options are also available for the Fusion Alloy Mast.  The standard Fusion Alloy Top Plate, or the quick connecting FQR system.

CHOOSE YOUR MAST LENGTH

The final link in the chain is deciding on the mast length you need. Sport, location and ability all play a key roll in this step, but with many options available, there is something to suit all styles.

Sizes:
